Creating a Tensorflow Object Detector Capsule

Introduction

In this tutorial, we will walk through how to make a capsule using an existing model trained with the Tensorflow Object Detection API. You can find the complete capsule on our GitHub repository.

Setup The Environment

See the previous tutorial for information on setting up a development environment.

A TensorFlow Face Detection Capsule

File Structure

As in the previous tutorial, we will begin by creating a new folder called detector_face, a meta.conf and a capsule.py. You will also need to put the existing TensorFlow model and the metadata in the directory. For this tutorial, they will be named detector.pb and dataset_metadata.json. Download the detector.pb and dataset_metadata.json from here. Other TensorFlow pre-trained models can be found in the Tensorflow Object Detection Model Zoo.

So now the file structure will look like:

your_working_directory
├── docker-compose.yml
└── capsules
    └── detector_face
        ├── meta.conf
        ├── capsule.py
        ├── detector.pb
        └── dataset_metadata.json

Capsule Metadata

Just as in the previous tutorial, put the version information in the meta.conf:

[about]
api_compatibility_version = 0.0

Capsule

First, import the dependencies:

# Import dependencies
import numpy as np
from typing import Dict

from vcap import (
    BaseCapsule,
    NodeDescription,
    DetectionNode,
    FloatOption,
    DETECTION_NODE_TYPE,
    OPTION_TYPE,
    BaseStreamState,
    rect_to_coords,
)
from vcap_utils import TFObjectDetector

The capsule definition will be a little bit more complicated than the previous one. In this capsule, we will have the threshold option. In addition, since we are using a real backend, we will pass in a lambda for backend_loader. We will talk more about this in the Backend section below.

# Define the Capsule class
class Capsule(BaseCapsule):
    # Metadata of this capsule
    name = "face_detector"
    description = "This is an example of how to wrap a TensorFlow Object " \
                  "Detection API model"
    version = 1

    # Define the input type. Since this is an object detector, and doesn't
    # require any input from other capsules, the input type will be a
    # NodeDescription with size=NONE.
    input_type = NodeDescription(size=NodeDescription.Size.NONE)

    # Define the output type. In this case, as we are going to return a list of
    # bounding boxes, the output type will be size=ALL. The type of detection
    # will be "face", and we will place the detection confidence in extra_data.
    output_type = NodeDescription(
        size=NodeDescription.Size.ALL,
        detections=["face"],
        extra_data=["detection_confidence"]
    )

    # Define the backend_loader
    backend_loader = lambda capsule_files, device: Backend(
        device=device,
        model_bytes=capsule_files["detector.pb"],
        metadata_bytes=capsule_files["dataset_metadata.json"])

    # The options for this capsule. In this example, we will allow the user to
    # set a threshold for the minimum detection confidence. This can be adjusted
    # using the BrainFrame client or through REST API.
    options = {
        "threshold": FloatOption(
            description="Filter out bad detections",
            default=0.5,
            min_val=0.0,
            max_val=1.0,
        )
    }

Backend

Because we are using a TensorFlow model, we are going to use a sub-class of TFObjectDetector instead of BaseBackend. The TFObjectDetector class will conveniently do the following for us:

  • Load the model bytes into memory
  • Perform batch inference
  • Close the model and clean up the memory when finished

TFObjectDetector already defines the constructor, batch_process() and close() methods for us, so we can skip defining them ourselves. We just need to handle the process_frame() method.

# Define the Backend Class
class Backend(TFObjectDetector):
    def process_frame(self, frame: np.ndarray,
                      detection_node: None,
                      options: Dict[str, OPTION_TYPE],
                      state: BaseStreamState) -> DETECTION_NODE_TYPE:
        """
        :param frame: A numpy array of shape (height, width, 3)
        :param detection_node: None
        :param options: Example: {"threshold": 0.5}. Defined in Capsule class above.
        :param state: (Unused in this capsule)
        :return: A list of detections
        """

        # Send the frame to the BrainFrame backend. This function will return a
        # queue. BrainFrame will batch_process() received frames and populate
        # the queue with the results.
        prediction_output_queue = self.send_to_batch(frame)

        # Wait for predictions
        predictions = prediction_output_queue.get()

        # Iterate through all the predictions received in this frame
        detection_nodes = []
        for prediction in predictions:
            # Filter out detections that is not a face.
            if prediction.name != "face":
                continue
            # Filter out detection with low confidence.
            if prediction.confidence < options["threshold"]:
                continue

            # Create a DetectionNode for the prediction. It will be reused by
            # any other capsules that require a face DetectionNode in their
            # input type. An age classifier capsule would be an example of such
            # a capsule.
            new_detection = DetectionNode(
                name=prediction.name,
                # convert [x1, y1, x2, y2] to [[x1,y1], [x1, y2]...]
                coords=rect_to_coords(prediction.rect),
                extra_data={"detection_confidence": prediction.confidence}
            )
            detection_nodes.append(new_detection)

        return detection_nodes

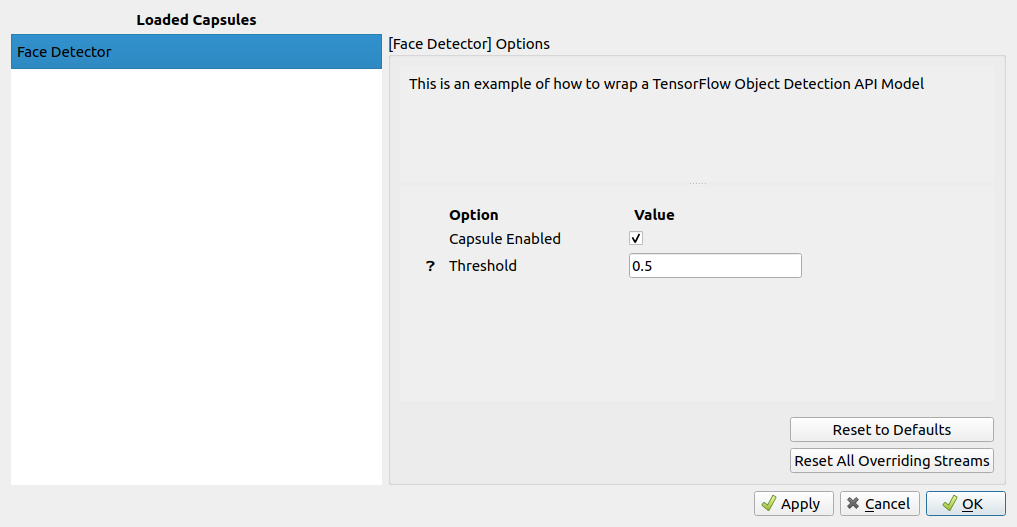

When you restart BrainFrame, your capsule will be packaged into a .cap file and initialized. You'll see its information on the BrainFrame client.

Once you load a stream, you will be able to see the inference results.
